Full Tapered Conical Springs CNC Prototypes DIN Standard Oem

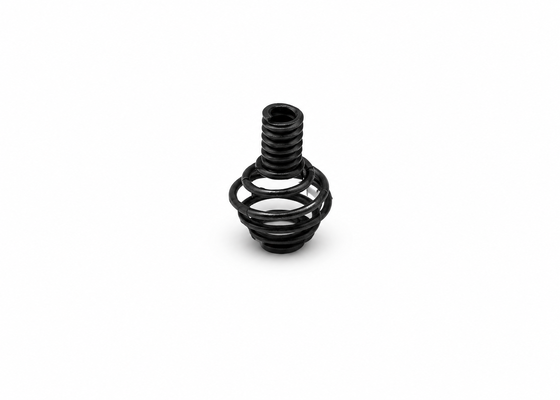

صورة كبيرة : Full Tapered Conical Springs CNC Prototypes DIN Standard Oem

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	Liyu
إصدار الشهادات:	ISO14001；ISO13485；IATF16949
رقم الموديل:	الينابيع المخروطية

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	التعبئة والتغليف القياسية للتصدير
شروط الدفع:	الاعتماد المستندي، تي/تي

اتصل نتحدث الآن

Full Tapered Conical Springs CNC Prototypes DIN Standard Oem

وصف

نوع المنتج:	الربيع المخروطي	نوع الهيكل:	مخروطي كامل / مخروطي جزئي / شكل برميل
مادة:	الفولاذ المقاوم للصدأ / الصلب الكربوني / سبيكة الصلب	نوع السلك:	سلك مستدير/سلك مسطح
اتجاه الملف:	حسب الطلب	المعالجة السطحية:	طلاء الزنك / طلاء النيكل / التخميل
عملية التصنيع:	اللف الربيعي باستخدام الحاسب الآلي	التسامح الأبعاد:	± 0.01 ملم
إصدار الشهادات:	ISO13485；ISO14001；IATF16949	خدمة مخصصة:	oem وأوديإم متاح
إبراز:	Conical Springs CNC prototypes , DIN standard Conical Springs , oem conical tapered spring

Conical Springs·CUSTOMIZATION

The specified working conditions of the conical/tower compression spring are: the large end of the compression spring is in the hole, and the small end is on the connecting rod. Compared with the straight cylinder compression spring, the advantage of the tower compression spring is: when designed to be compressed When the pressure and height are reduced.

The two ends of the conical/tower-shaped compression spring are ground flat, and the verticality is increased in order to better reduce the compression height.

The parameters of the conical compression spring

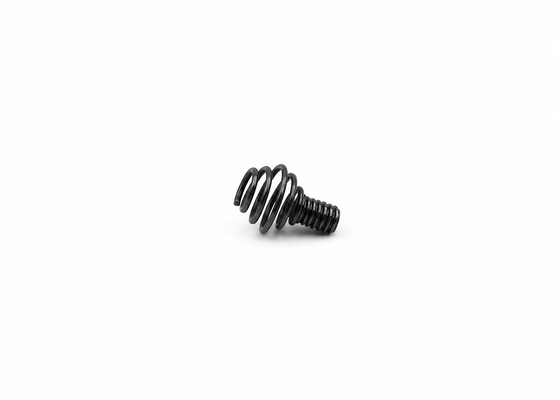

Full Tapered Conical Springs CNC Prototypes DIN Standard Oem

d (spring wire diameter): This parameter describes the diameter of the spring wire.
S (Maximum Diameter of Mandrel) This parameter describes the maximum diameter of the spring shaft in industrial applications.
De (outer diameter of the outsole): the outer diameter of the widest end of the spring.
De (outer diameter of small bottom): the outer diameter of the narrowest end of the spring.
H (minimum aperture): This is the diameter of the minimum space required for the normal operation of the spring.
Lc (compressed length): The theoretical length of the spring when each coil is in contact. For most tower springs, this value is equal to the wire diameter.
L0 (Natural Length): The length of the spring in its natural state after being compressed once.
R Spring stiffness: This parameter represents the load change per unit deformation of the spring. Unit calculation: 1 DaN/mm = 10 N/mm (Newton/mm), tolerance ±15%.
L1 & F1 (length L1 of the spring under load F1): Load F1 and length L1 can be calculated with this formula: F1 = (L0-L1)* R, and then calculate the length L1: L1 = L0-F1/R

Characteristic	Parameter
Structural Features	Cylindrical
	Conical
	Barrel
	Hourglass
	Closed at both ends
	Two End opening
	Shrink both ends
	The ends are flat li>Variable pitch
	The ends are not flat
	Fixed pitch
Surface treatment	Blackening
	Shot Peening
	Apply anti-rust oil
	Zinc plating
	Polishing
	Electrolytic polishing
	Nickel plating
	Dacromet
	Teflon spray
Materials	Carbon spring steel wire SWC
	Piano wire SWPB
	Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
	65Mn
	82B
	55CrSi (SWOSC-V)
	Nickel-plated wire, galvanized wire
	Copper wire, phosphor copper wire, beryllium copper wire
	Square wire, flat wire, semicircular wire
	Alloy material wire
	Other special specifications steel wire
Wire diameter specifications	0.1~6mm

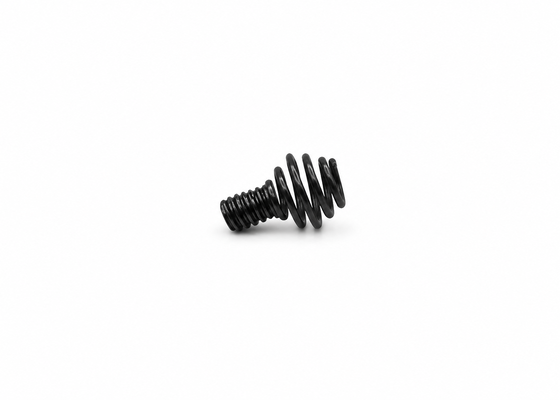

Full Tapered Conical Springs CNC Prototypes DIN Standard Oem
