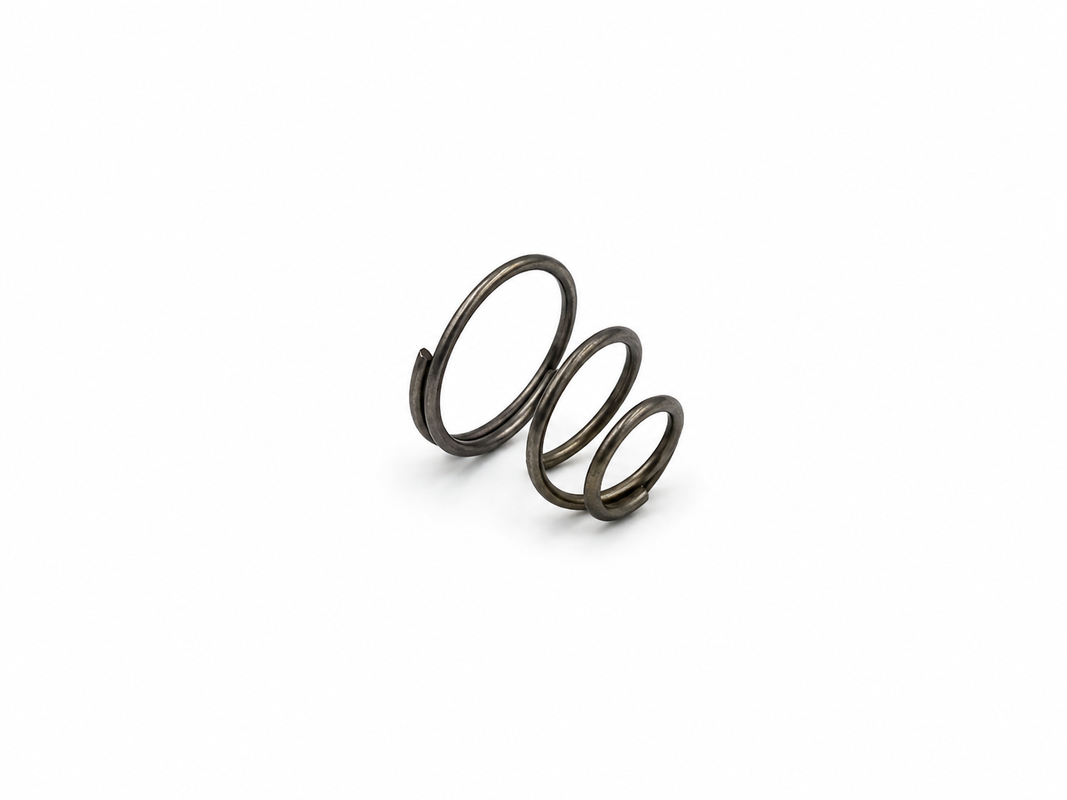

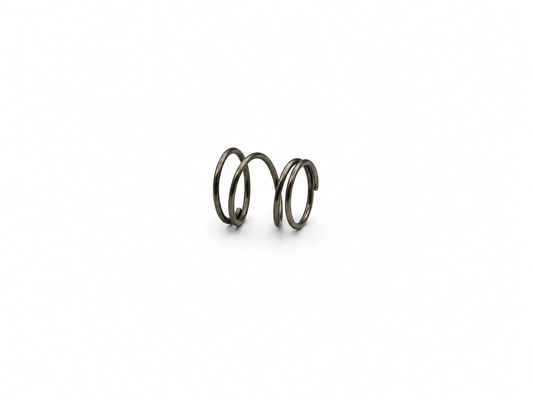

IATF16949 Helical Compression Small Conical Springs Industrial Grade

IATF16949 Helical Compression Small Conical Springs Industrial Grade
IATF16949 Helical Compression Small Conical Springs Industrial Grade IATF16949 Helical Compression Small Conical Springs Industrial Grade

Large Image :  IATF16949 Helical Compression Small Conical Springs Industrial Grade

Product Details:
Place of Origin: China
Brand Name: Liyu
Certification: ISO14001；ISO13485；IATF16949
Model Number: Conical Springs
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard export packaging
Payment Terms: L/C,T/T
Contact Now Chat Now

IATF16949 Helical Compression Small Conical Springs Industrial Grade

Description
Product Type: Conical Spring Spring Type: Compression Conical Spring / Tapered Spring
Structure Type: Full Conical / Partial Conical / Barrel Shape Material: Stainless Steel / Carbon Steel / Alloy Steel
Manufacturing Process: CNC Spring Coiling Dimensional Tolerance: ±0.01mm
Certification: ISO13485；ISO14001；IATF16949 Custom Service: OEM & ODM Available
Highlight:

IATF16949 small conical springs

,

Industrial small conical springs

,

IATF16949 conical helical spring

Conical Springs·CUSTOMIZATION

We provide complete customized conical spring solutions for customers requiring special spring designs and performance requirements. Our services include engineering support, material selection, prototype development, precision manufacturing, quality inspection, and export solutions. Whether you need miniature conical springs, heavy-duty tapered springs, or OEM compression spring designs, we can provide reliable products tailored to your application needs.

The parameters of the conical compression spring

IATF16949 Helical Compression Small Conical Springs Industrial Grade

  • d (spring wire diameter): This parameter describes the diameter of the spring wire.
  • S (Maximum Diameter of Mandrel) This parameter describes the maximum diameter of the spring shaft in industrial applications.
  • De (outer diameter of the outsole): the outer diameter of the widest end of the spring.
  • De (outer diameter of small bottom): the outer diameter of the narrowest end of the spring.
  • H (minimum aperture): This is the diameter of the minimum space required for the normal operation of the spring.
  • Lc (compressed length): The theoretical length of the spring when each coil is in contact. For most tower springs, this value is equal to the wire diameter.
  • L0 (Natural Length): The length of the spring in its natural state after being compressed once.
  • R Spring stiffness: This parameter represents the load change per unit deformation of the spring. Unit calculation: 1 DaN/mm = 10 N/mm (Newton/mm), tolerance ±15%.
  • L1 & F1 (length L1 of the spring under load F1): Load F1 and length L1 can be calculated with this formula: F1 = (L0-L1)* R, and then calculate the length L1: L1 = L0-F1/R
Characteristic Parameter













        Structural Features

 Cylindrical
Conical
Barrel
Hourglass
Closed at both ends
Two End opening
Shrink both ends
The ends are flat li>Variable pitch
The ends are not flat
Fixed pitch











       Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray















              Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire
Wire diameter specifications 0.1~6mm

IATF16949 Helical Compression Small Conical Springs Industrial Grade

IATF16949 Helical Compression Small Conical Springs Industrial Grade

Tag:

miniature conical springs,

tapered spring,

small conical compression springs
