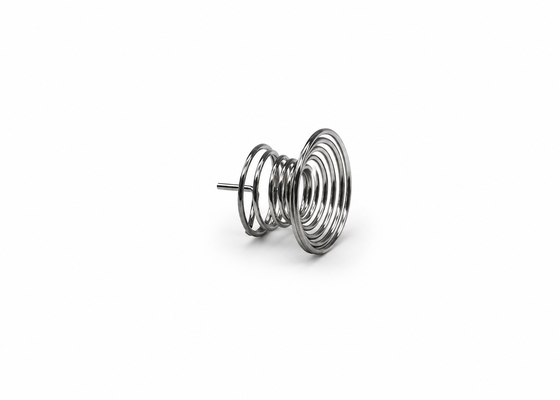

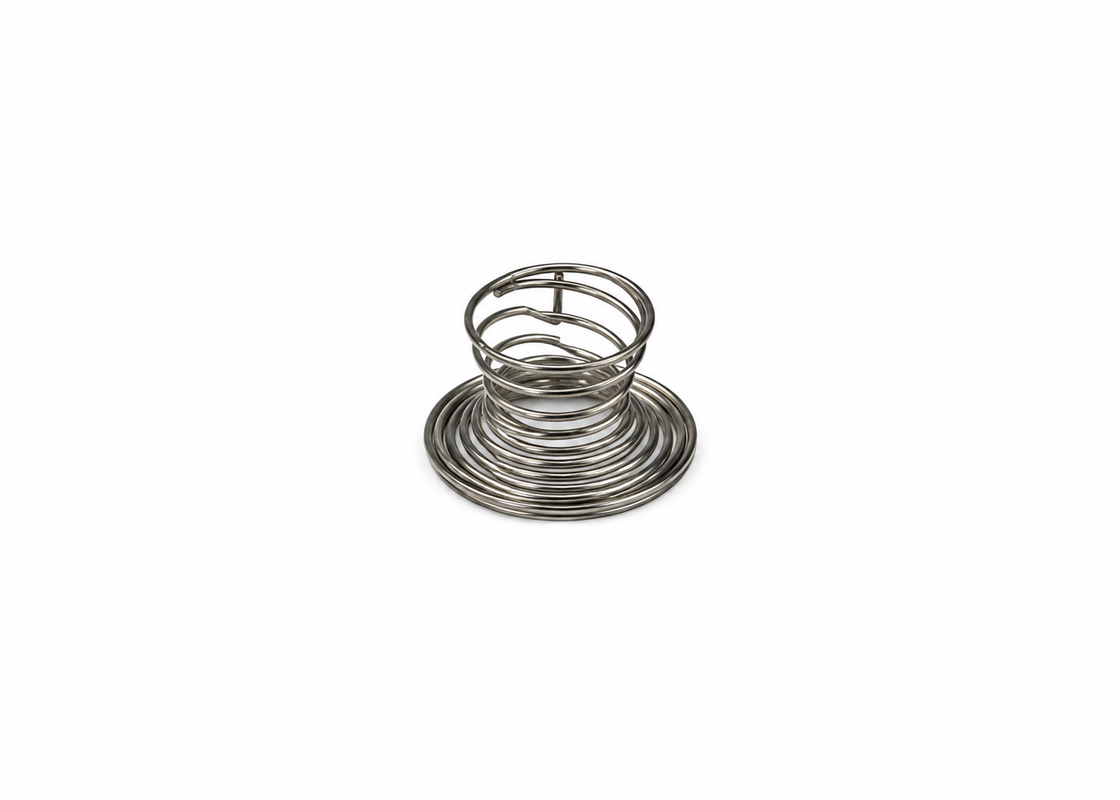

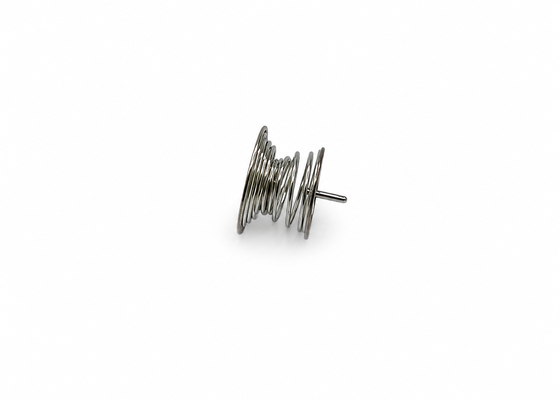

ODM Tapered Small Conical Compression Springs Shot Peening

Ampliación de imagen : ODM Tapered Small Conical Compression Springs Shot Peening

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Liyu
Certificación:	ISO14001；ISO13485；IATF16949
Número de modelo:	muelles cónicos

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	Negociable
Detalles de empaquetado:	Embalaje estándar de exportación
Condiciones de pago:	LC, T/T

Contacto Ahora Charle

ODM Tapered Small Conical Compression Springs Shot Peening

descripción

Tipo de producto:	primavera cónica	tipo de resorte:	Resorte cónico de compresión/resorte cónico
Tipo de estructura:	Cónico completo/cónico parcial/forma de barril	Material:	Acero de acero/de carbono inoxidable/acero de aleación
Proceso de fabricación:	Bobinado de resorte CNC	Tolerancia dimensional:	±0,01 mm
Certificación:	ISO13485；ISO14001；IATF16949	Servicio personalizado:	OEM y ODM disponibles
Resaltar:	ODM small conical compression springs , Shot Peening small conical compression springs , ODM tapered compression spring

Conical Springs·CUSTOMIZATION

We are a professional custom conical spring manufacturer specializing in high-quality tapered compression spring solutions for global industrial customers. Our conical springs are designed with a gradually changing diameter structure to provide excellent space efficiency, stable load performance, and reliable mechanical operation. With advanced spring manufacturing equipment and strict quality control, we produce customized conical springs according to customer drawings, samples, and technical specifications.

The parameters of the conical compression spring

ODM Tapered Small Conical Compression Springs Shot Peening

d (spring wire diameter): This parameter describes the diameter of the spring wire.
S (Maximum Diameter of Mandrel) This parameter describes the maximum diameter of the spring shaft in industrial applications.
De (outer diameter of the outsole): the outer diameter of the widest end of the spring.
De (outer diameter of small bottom): the outer diameter of the narrowest end of the spring.
H (minimum aperture): This is the diameter of the minimum space required for the normal operation of the spring.
Lc (compressed length): The theoretical length of the spring when each coil is in contact. For most tower springs, this value is equal to the wire diameter.
L0 (Natural Length): The length of the spring in its natural state after being compressed once.
R Spring stiffness: This parameter represents the load change per unit deformation of the spring. Unit calculation: 1 DaN/mm = 10 N/mm (Newton/mm), tolerance ±15%.
L1 & F1 (length L1 of the spring under load F1): Load F1 and length L1 can be calculated with this formula: F1 = (L0-L1)* R, and then calculate the length L1: L1 = L0-F1/R

Characteristic	Parameter
Structural Features	Cylindrical
	Conical
	Barrel
	Hourglass
	Closed at both ends
	Two End opening
	Shrink both ends
	The ends are flat li>Variable pitch
	The ends are not flat
	Fixed pitch
Surface treatment	Blackening
	Shot Peening
	Apply anti-rust oil
	Zinc plating
	Polishing
	Electrolytic polishing
	Nickel plating
	Dacromet
	Teflon spray
Materials	Carbon spring steel wire SWC
	Piano wire SWPB
	Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
	65Mn
	82B
	55CrSi (SWOSC-V)
	Nickel-plated wire, galvanized wire
	Copper wire, phosphor copper wire, beryllium copper wire
	Square wire, flat wire, semicircular wire
	Alloy material wire
	Other special specifications steel wire
Wire diameter specifications	0.1~6mm

ODM Tapered Small Conical Compression Springs Shot Peening
