Tapered Compression Conical Springs Coil Beryllium Copper 302SS

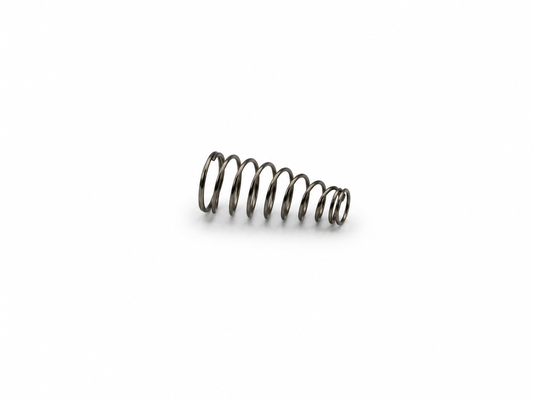

Image Grand : Tapered Compression Conical Springs Coil Beryllium Copper 302SS

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Liyu
Certification:	ISO14001；ISO13485；IATF16949
Numéro de modèle:	ressorts coniques

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble
Prix:	Négociable
Détails d'emballage:	Emballage standard d'exportation
Conditions de paiement:	LC, T/T

Contact Causez Maintenant

Tapered Compression Conical Springs Coil Beryllium Copper 302SS

description de

Type de produit:	ressort conique	Type de ressort:	Ressort conique de compression/ressort conique
Matériel:	Acier inoxydable/acier au carbone/allié	Type de fil:	Fil rond / fil plat
Direction de la bobine:	Personnalisé	Traitement de surface:	Zingage / Nickelage / Passivation
Processus de fabrication:	Enroulage de ressort CNC	Tolérance dimensionnelle:	±0,01mm
Certification:	ISO13485；ISO14001；IATF16949	Service personnalisé:	OEM et ODM disponibles
Mettre en évidence:	Beryllium Copper Conical Springs , 302SS Conical Springs , Beryllium Copper tapered coil spring

Conical Springs·CUSTOMIZATION

Our stainless steel conical springs provide outstanding corrosion resistance, strength, and durability in harsh working environments. Manufactured from high-quality stainless steel materials, these tapered springs maintain stable performance under exposure to moisture, chemicals, and temperature variations. They are widely used in medical equipment, electronics, automotive systems, marine applications, and precision machinery.

The parameters of the conical compression spring

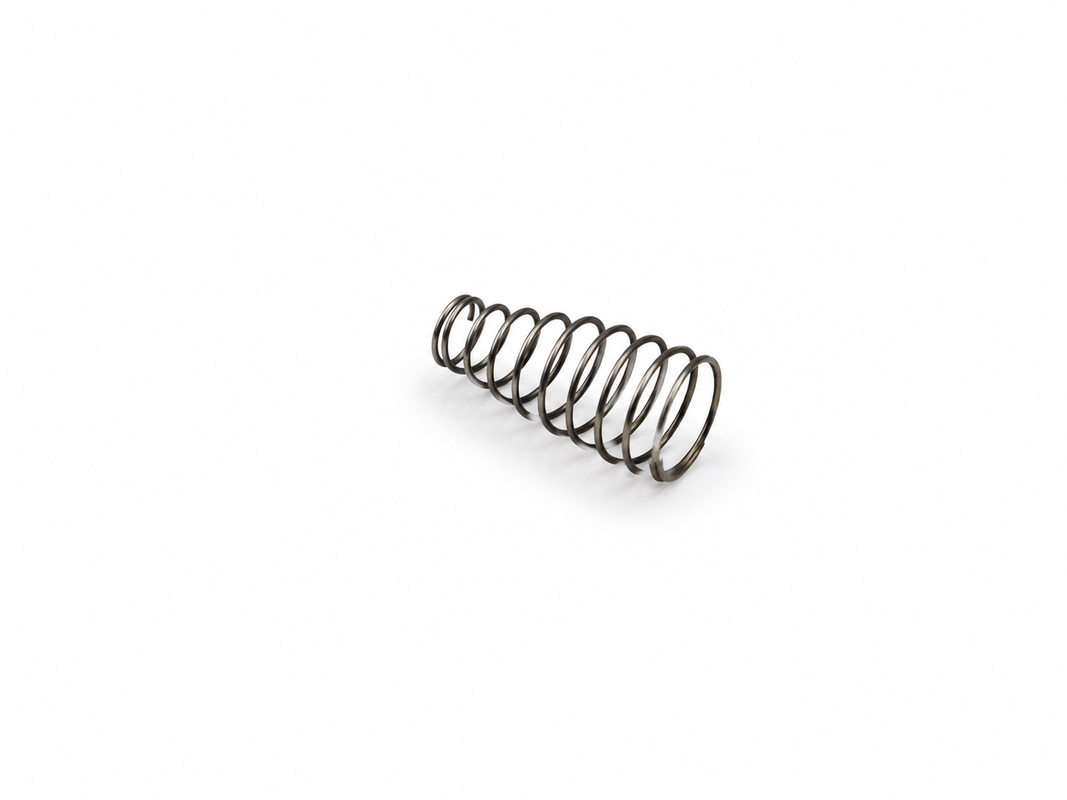

Tapered Compression Conical Springs Coil Beryllium Copper 302SS

d (spring wire diameter): This parameter describes the diameter of the spring wire.
S (Maximum Diameter of Mandrel) This parameter describes the maximum diameter of the spring shaft in industrial applications.
De (outer diameter of the outsole): the outer diameter of the widest end of the spring.
De (outer diameter of small bottom): the outer diameter of the narrowest end of the spring.
H (minimum aperture): This is the diameter of the minimum space required for the normal operation of the spring.
Lc (compressed length): The theoretical length of the spring when each coil is in contact. For most tower springs, this value is equal to the wire diameter.
L0 (Natural Length): The length of the spring in its natural state after being compressed once.
R Spring stiffness: This parameter represents the load change per unit deformation of the spring. Unit calculation: 1 DaN/mm = 10 N/mm (Newton/mm), tolerance ±15%.
L1 & F1 (length L1 of the spring under load F1): Load F1 and length L1 can be calculated with this formula: F1 = (L0-L1)* R, and then calculate the length L1: L1 = L0-F1/R

Characteristic	Parameter
Structural Features	Cylindrical
	Conical
	Barrel
	Hourglass
	Closed at both ends
	Two End opening
	Shrink both ends
	The ends are flat li>Variable pitch
	The ends are not flat
	Fixed pitch
Surface treatment	Blackening
	Shot Peening
	Apply anti-rust oil
	Zinc plating
	Polishing
	Electrolytic polishing
	Nickel plating
	Dacromet
	Teflon spray
Materials	Carbon spring steel wire SWC
	Piano wire SWPB
	Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
	65Mn
	82B
	55CrSi (SWOSC-V)
	Nickel-plated wire, galvanized wire
	Copper wire, phosphor copper wire, beryllium copper wire
	Square wire, flat wire, semicircular wire
	Alloy material wire
	Other special specifications steel wire
Wire diameter specifications	0.1~6mm

Tapered Compression Conical Springs Coil Beryllium Copper 302SS
