55CrSi Heavy Duty Torsion Springs Stainless Steel Nickel Plated Wire

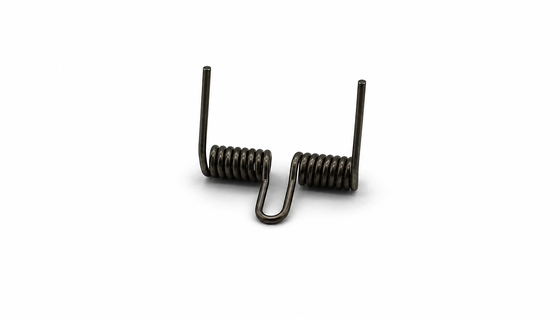

Large Image : 55CrSi Heavy Duty Torsion Springs Stainless Steel Nickel Plated Wire

Product Details:

Place of Origin:	China
Brand Name:	Liyu
Certification:	ISO14001；ISO13485；IATF16949
Model Number:	Torsion Spring

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard export packaging
Payment Terms:	L/C,T/T

Contact Now Chat Now

55CrSi Heavy Duty Torsion Springs Stainless Steel Nickel Plated Wire

Description

Spring Type:	Torsion Spring	Free Height:	Customized
Leg Angle:	0°-360°	Working Angle:	30° / 90° / 180°
Rotation Direction:	Left Hand / Right Hand	Leg Style / End Type:	Straight Leg / Offset Leg / Hook Leg
End Treatment:	Ground / Cut / Bent	Certification:	ISO13485；ISO14001；IATF16949
Surface Treatment:	Zinc Plating / Nickel Plating / Black Oxide / Passivation	Manufacturing Process:	CNC Spring Coiling / Automatic Winding
Highlight:	55CrSi heavy duty torsion springs , Nickel Plated heavy duty torsion springs , 55CrSi stainless torsion spring

torsion spring·CUSTOMIZATION

A torsion spring is a helical spring that can apply torque or rotational force. The end of the torsion spring is connected to other parts. When those parts rotate around the center of the spring, the spring pushes them back to their original positions. Although this name may have other meanings. The torsion spring seems to act more like a deformation force than a torque. They can store and release energy or fix a mechanical part in a certain position by twisting the spring arm along the vertical axis of the spring body.

Parameter index of torsion spring

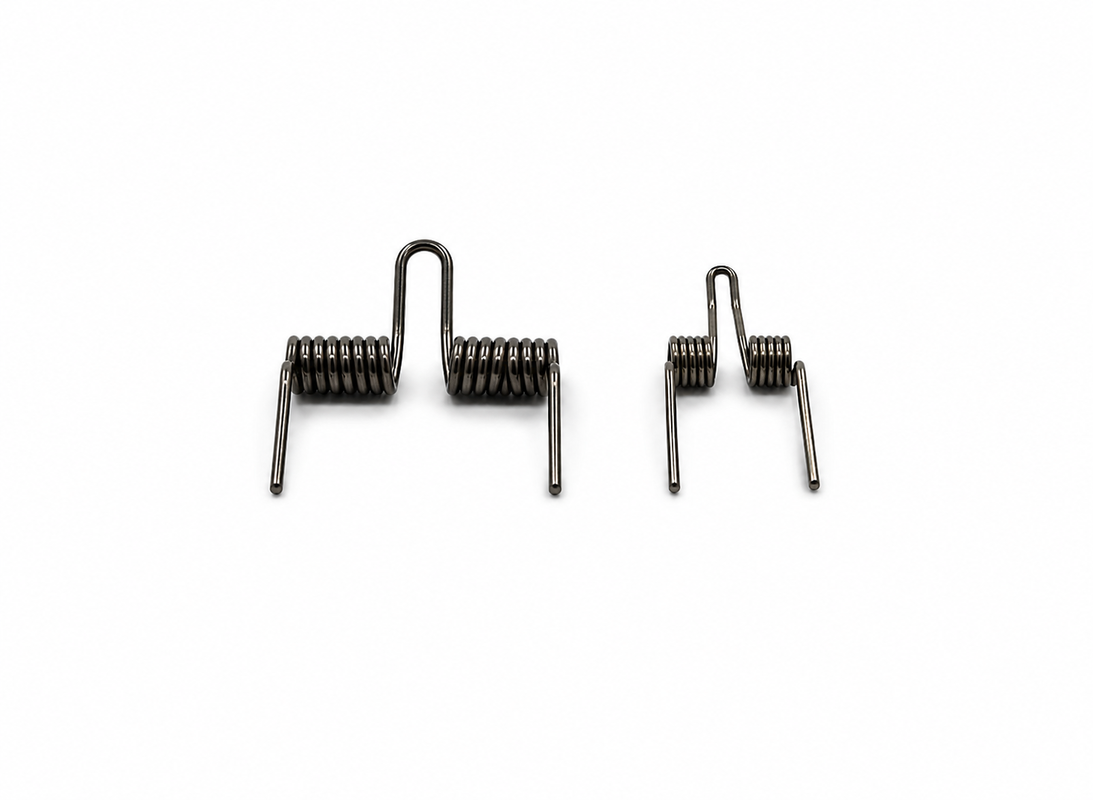

55CrSi Heavy Duty Torsion Springs Stainless Steel Nickel Plated Wire

To customize the torsion spring, you need to provide the following necessary parameter information:
Wire diameter d: mm	(Note: the diameter of the spring wire)
Outer diameter D2: mm	(Note: the diameter of the outer circle of the spring)
Expanded length L0: mm	(Description: the expanded length of the spring)
Number of laps Tum: lap	(Note: the total number of turns of the spring)
Angle Deg: °	(Note: the original angle between the twisted feet)
For customized torsion springs, you also need to provide the following technical requirements:
turn around:	(Description: Left-handedRight-handed)
Material requirements:	(Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment:	(Explanation: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
Strength requirements:	(Note: Elastic performance, other technical requirements, etc.)

Spring end characteristics

55CrSi Heavy Duty Torsion Springs Stainless Steel Nickel Plated Wire

Characteristic	Parameter
Two ends structure	Straight closing
	Short hook closing
	Hinge closing
	Straight twist closing
	Curved closing
	Double twist closing
Surface treatment	Blackening
	Shot Peening
	Apply anti-rust oil
	Zinc plating
	Polishing
	Electrolytic polishing
	Nickel plating
	Dacromet
	Teflon spray
Materials	Carbon spring steel wire SWC
	Piano wire SWPB
	Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
	65Mn
	82B
	55CrSi (SWOSC-V)
	Nickel-plated wire, galvanized wire
	Copper wire, phosphor copper wire, beryllium copper wire
	Square wire, flat wire, semicircular wire
	Alloy material wire
	Other special specifications steel wire
Wire diameter specifications	0.1~6mm
