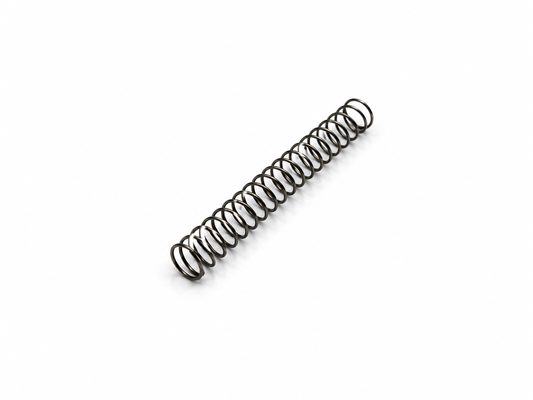

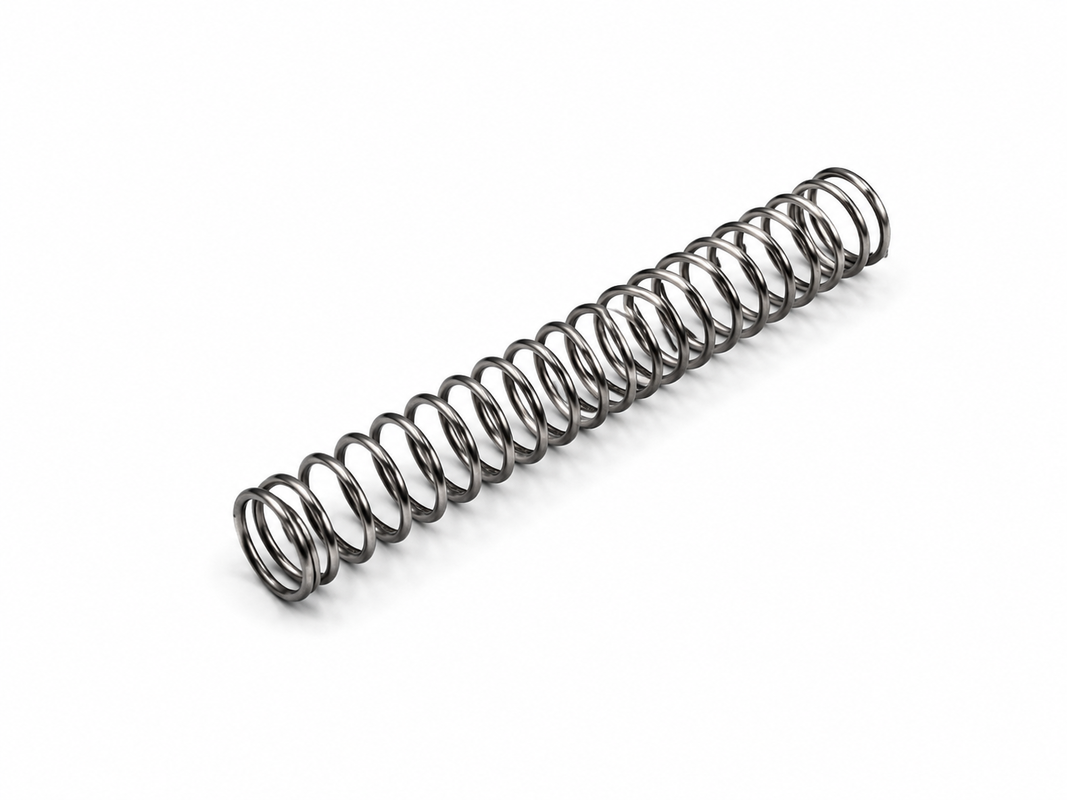

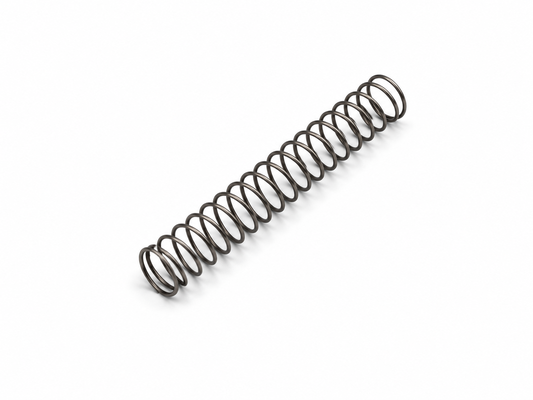

Mechanical SS Stainless Steel Compression Springs Passivation Surface Treatment

Grande immagine : Mechanical SS Stainless Steel Compression Springs Passivation Surface Treatment

Dettagli:

Luogo di origine:	Cina
Marca:	Liyu
Certificazione:	ISO14001；ISO13485；IATF16949
Numero di modello:	Molla di compressione

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 set
Prezzo:	Negoziabile
Imballaggi particolari:	Imballaggio standard per l'esportazione
Termini di pagamento:	L/C, T/T

Contatto Ora chiacchieri

Mechanical SS Stainless Steel Compression Springs Passivation Surface Treatment

descrizione

Nome:	Molla di compressione	Misurare:	Personalizzato
Certificazione:	ISO13485；ISO14001；IATF16949	Trattamento superficiale:	Zincato, Nichelato, Cromato, Ossido nero, Elettroforesi, Verniciatura a polvere, Passivazione, Nessu
Tipo di fine:	Estremità chiuse, Estremità aperte, Estremità molate, Estremità chiuse e molate	Applicazione:	Automotive, medicale, elettronica, attrezzature industriali, macchine agricole, aerospaziale, prodot
Materiale:	Acciaio inossidabile (304, 316, 302), filo armonico, acciaio al carbonio, filo temperato ad olio, cr
Evidenziare:	Mechanical stainless steel compression springs , Passivation stainless steel compression springs , Passivation ss compression springs

Compression spring·CUSTOMIZATION

Our compression springs are widely used in industrial applications including machinery, automation equipment, electrical devices, tools, and mechanical systems. Designed for efficient energy storage and force management, our springs help improve equipment performance and operational stability. We offer various materials, sizes, and customization options to meet different industrial requirements.

Technical parameters of cylindrical spiral compression spring

To customize the compression spring, you need to provide the following necessary parameter information:
Wire diameter d: mm	(Note: the diameter of the spring wire)
Outer diameter D2: mm	(Note: the diameter of the outer circle of the spring)
Length L0: mm	(Note: the free height of the spring)
Number of circles Na: circle	(Note: the total number of turns of the spring)
For customized compression springs, you also need to provide the following technical requirements:
turn around:	(Description: Left-handedRight-handed)
Material requirements:	(Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment:	(Description: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
End form:	(Explanation: TightenGrindTightly polish)
Strength requirements:	(Note: Elastic performance, other technical requirements, etc.)

Spring end characteristics

Characteristic	Parameter
Structural Features	Cylindrical
	Hourglass
	Shrink both ends
	Fixed pitch
	Conical
	Closed at both ends
	The ends are flat
	Variable pitch
	Barrel
	Two End opening
	The ends are not flat
Surface treatment	Blackening
	Shot Peening
	Apply anti-rust oil
	Zinc plating
	Polishing
	Electrolytic polishing
	Nickel plating
	Dacromet
	Teflon spray
Materials	Carbon spring steel wire SWC
	Piano wire SWPB
	Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
	65Mn
	82B
	55CrSi (SWOSC-V)
	Nickel-plated wire, galvanized wire
	Copper wire, phosphor copper wire, beryllium copper wire
	Square wire, flat wire, semicircular wire
	Alloy material wire
	Other special specifications steel wire
Wire diameter specifications	0.1~6mm
