CNC SUS301 Stainless Steel Extension Springs Coil Tension Springs Batch Production

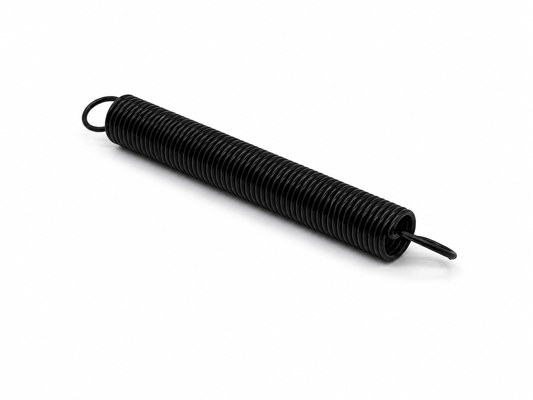

Imagem Grande : CNC SUS301 Stainless Steel Extension Springs Coil Tension Springs Batch Production

Detalhes do produto:

Lugar de origem:	China
Marca:	Liyu
Certificação:	ISO14001；ISO13485；IATF16949
Número do modelo:	mola de tensão

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Negociável
Detalhes da embalagem:	Embalagem padrão de exportação
Termos de pagamento:	L/C,T/T

Contato Converse agora

CNC SUS301 Stainless Steel Extension Springs Coil Tension Springs Batch Production

descrição

Tipo de produto:	Mola de tensão/mola de extensão	Material:	Aço de aço inoxidável/aço carbono/liga
Personalização:	OEM e ODM disponíveis	Tratamento de superfície:	Zincagem / Niquelagem / Passivação
Formato de desenho:	CAD, PDF, PASSO	vida útil da fadiga:	Ciclos personalizados
Resistência à corrosão:	Alta resistência à corrosão	Tratamento térmico:	Alívio de estresse/tratamento térmico disponível
Forma do fio:	Fio Redondo, Fio Quadrado, Fio Retangular	Processo de Fabricação:	Enrolamento de mola CNC, enrolamento automático, formação de gancho
Inspeção:	Teste de carga, teste de fadiga, inspeção dimensional	Aplicativo:	Automotivo, Equipamentos Médicos, Eletrônicos, Equipamentos Industriais
Destacar:	CNC stainless steel extension springs , SUS301 stainless steel extension springs , batch production coil tension springs

tension spring·CUSTOMIZATION

As an experienced OEM compression spring supplier, we provide customized spring manufacturing services for worldwide customers. Our engineers work closely with clients to develop springs that meet specific load requirements, installation spaces, and working conditions. We support prototype development, small batch production, and large-scale manufacturing with competitive pricing and stable quality. Our goal is to become a reliable long-term spring manufacturing partner.
CNC SUS301 Stainless Steel Extension Springs Coil Tension Springs Batch Production

To customize the tension spring, you need to provide the following necessary parameter information:
Wire diameter d: mm	(Note: the diameter of the spring wire)
Outer diameter D2: mm	(Note: the diameter of the outer circle of the spring)
Length L0: mm	(Note: the free height of the spring)
Number of circles Na: circle	(Note: the total number of turns of the spring)
For customized compression springs, you also need to provide the following technical requirements:
turn around:	(Description: left-handedright-handed)
Material requirements:	(Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment:	(Description: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
Pull hook form:	(Description: round hook/semi-circle hook/U hook/middle ear/change hook... etc.)
Strength requirements:	(Note: Elastic performance, other technical requirements, etc.)

CNC SUS301 Stainless Steel Extension Springs Coil Tension Springs Batch Production

Characteristic	Parameter
Two ends structure	Straight closing
	Short hook closing
	Hinge closing
	Straight twist closing
	Curved closing
	Double twist closing
Surface treatment	Blackening
	Shot Peening
	Apply anti-rust oil
	Zinc plating
	Polishing
	Electrolytic polishing
	Nickel plating
	Dacromet
	Teflon spray
Materials	Carbon spring steel wire SWC
	Piano wire SWPB
	Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
	65Mn
	82B
	55CrSi (SWOSC-V)
	Nickel-plated wire, galvanized wire
	Copper wire, phosphor copper wire, beryllium copper wire
	Square wire, flat wire, semicircular wire
	Alloy material wire
	Other special specifications steel wire
Wire diameter specifications	0.1~6mm
