Custom Electrophoresis Extension Industrial Tension Springs Heavy Duty For Machinery

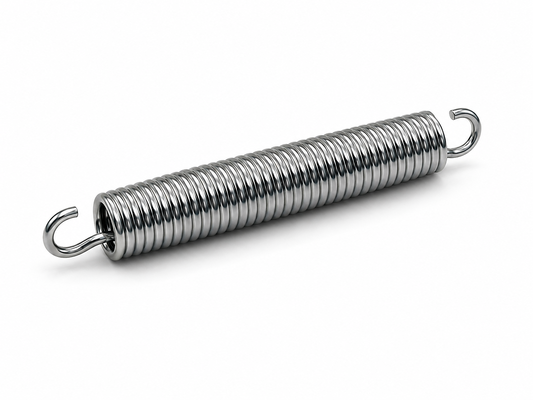

Large Image : Custom Electrophoresis Extension Industrial Tension Springs Heavy Duty For Machinery

Product Details:

Place of Origin:	China
Brand Name:	Liyu
Certification:	ISO14001；ISO13485；IATF16949
Model Number:	Tension Spring

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard export packaging
Payment Terms:	L/C,T/T

Contact Now Chat Now

Custom Electrophoresis Extension Industrial Tension Springs Heavy Duty For Machinery

Description

Product Type:	Tension Spring / Extension Spring	Certification:	ISO13485；ISO14001；IATF16949
Material:	Stainless Steel / Carbon Steel / Alloy Steel	Customization:	OEM & ODM Available
Surface Treatment:	Zinc Plating / Nickel Plating / Passivation	Drawing Format:	CAD, PDF, STEP
Fatigue Life:	Customized Cycles	Heat Treatment:	Stress Relieving / Heat Treatment Available
Wire Shape:	Round Wire, Square Wire, Rectangular Wire	Manufacturing Process:	CNC Spring Coiling, Automatic Coiling, Hook Forming
Inspection:	Load Testing, Fatigue Testing, Dimension Inspection	Hook Type:	Machine Hook / Extended Hook / Cross Over Hook
Highlight:	electrophoresis industrial tension springs , Custom industrial tension springs , electrophoresis extension spring heavy duty

tension spring·CUSTOMIZATION

Stainless steel compression springs offer outstanding corrosion resistance, durability, and mechanical strength. They are widely used in medical equipment, electronics, automotive components, marine applications, and industrial machinery. We manufacture stainless steel springs using premium materials to ensure reliable performance in harsh environments. Customized sizes and specifications are available according to customer requirements. Custom Electrophoresis Extension Industrial Tension Springs Heavy Duty For Machinery

To customize the tension spring, you need to provide the following necessary parameter information:
Wire diameter d: mm	(Note: the diameter of the spring wire)
Outer diameter D2: mm	(Note: the diameter of the outer circle of the spring)
Length L0: mm	(Note: the free height of the spring)
Number of circles Na: circle	(Note: the total number of turns of the spring)
For customized compression springs, you also need to provide the following technical requirements:
turn around:	(Description: left-handed right-handed)
Material requirements:	(Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment:	(Description: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
Pull hook form:	(Description: round hook/semi-circle hook/U hook/middle ear/change hook... etc.)
Strength requirements:	(Note: Elastic performance, other technical requirements, etc.)

Custom Electrophoresis Extension Industrial Tension Springs Heavy Duty For Machinery

Characteristic	Parameter
Two ends structure	Straight closing
	Short hook closing
	Hinge closing
	Straight twist closing
	Curved closing
	Double twist closing
Surface treatment	Blackening
	Shot Peening
	Apply anti-rust oil
	Zinc plating
	Polishing
	Electrolytic polishing
	Nickel plating
	Dacromet
	Teflon spray
Materials	Carbon spring steel wire SWC
	Piano wire SWPB
	Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
	65Mn
	82B
	55CrSi (SWOSC-V)
	Nickel-plated wire, galvanized wire
	Copper wire, phosphor copper wire, beryllium copper wire
	Square wire, flat wire, semicircular wire
	Alloy material wire
	Other special specifications steel wire
Wire diameter specifications	0.1~6mm
